Wide Variety and Selection
Threaded nozzles come in a variety of materials, shapes, and bore sizes. Tip placement options include 1/4″ or 1/8″ recess, flush, or 1/8″ stick out.
Smooth Gas Flow
The spatter shield within the nozzle holds the tip in place, protects the diffuser, and directs gas evenly with reduced turbulence.
Extended Service Life
Rugged nozzles include a ceramic insulator for extended life and withstand heat and abuse.
No Tools Required
No tools are required to replace the nozzle or contact tip with a unique Centerfire design.

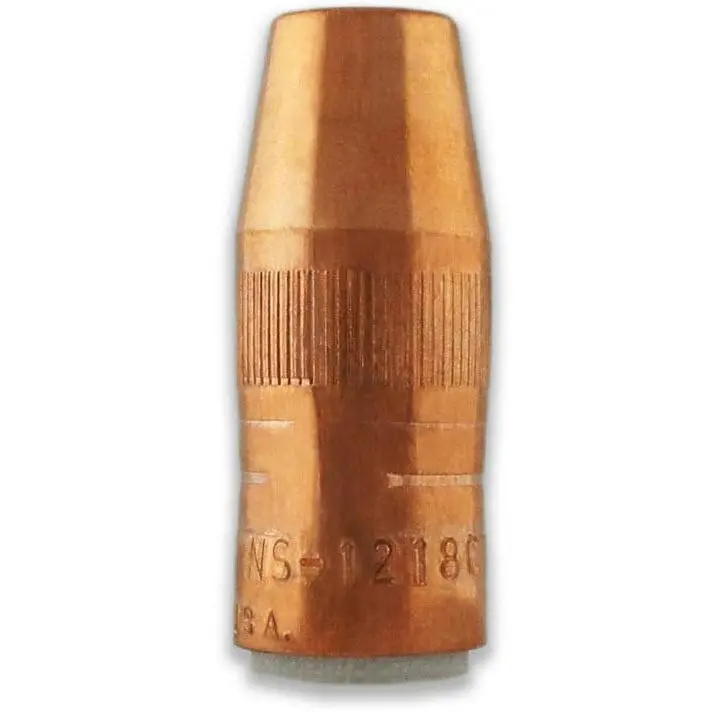

| Part Number | I.D. | Contact Tip Recess | Material |
| Centerfire Small Standard Nozzles | |||
|---|---|---|---|
| NS-1218B | 1/2″ (12.7 mm) | 1/8″ (3.175 mm) | Brass |
| NS-1218C | 1/2″ (12.7 mm) | 1/8″ (3.175 mm) | Copper |
| NS-1200B | 1/2″ (12.7 mm) | Flush | Brass |
| NS-5818B | 5/8″ (15.87 mm) | 1/8″ (3.175 mm) | Brass |
| NS-5818C | 5/8″ (15.87 mm) | 1/8″ (3.175 mm) | Copper |
| NS-5800B | 5/8″ (15.87 mm) | Flush | Brass |
| Centerfire Small Tapered Nozzles | |||
| NST-3818B | 3/8″ (9.53 mm) | 1/8″ (3.175 mm) | Brass |
| NST-3800B | 3/8″ (9.53 mm) | Flush | Brass |
| NST-38XTB | 3/8″ (9.53 mm) | 1/8″ (3.175 mm) Extension | Brass |
| Centerfire Large Standard Nozzles | |||
| N-5814B | 5/8″ (15.87 mm) | 1/4″ (6.35 mm) | Brass |
| N-5814C | 5/8″ (15.87 mm) | 1/4″ (6.35 mm) | Copper |
| N-5818B | 5/8″ (15.87 mm) | 1/8″ (3.175 mm) | Brass |
| N-5818C | 5/8″ (15.87 mm) | 1/8″ (3.175 mm) | Copper |
Specifiactions
Click to view full Spec Sheet.
