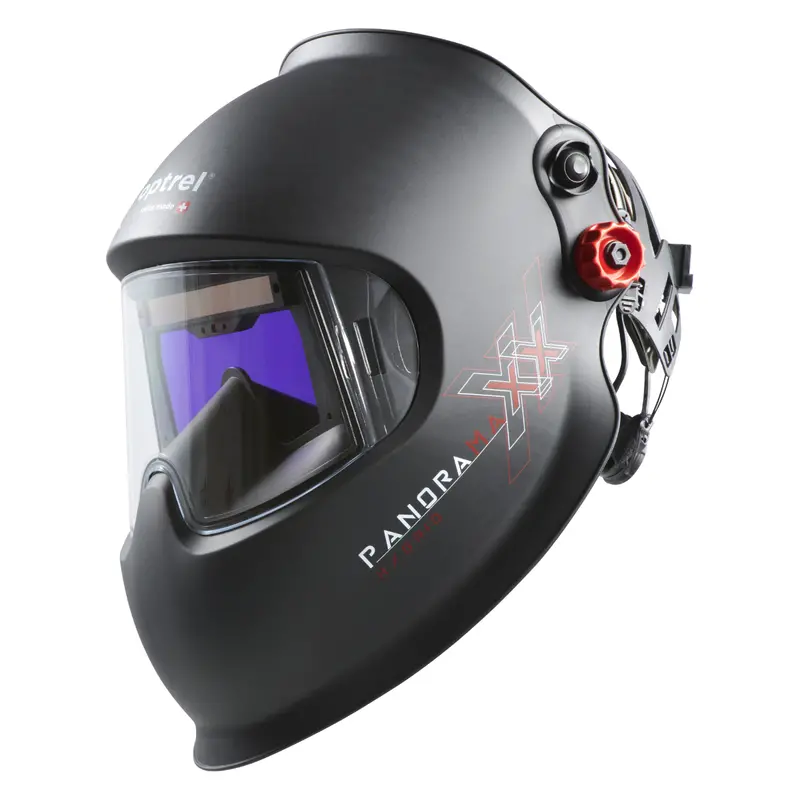

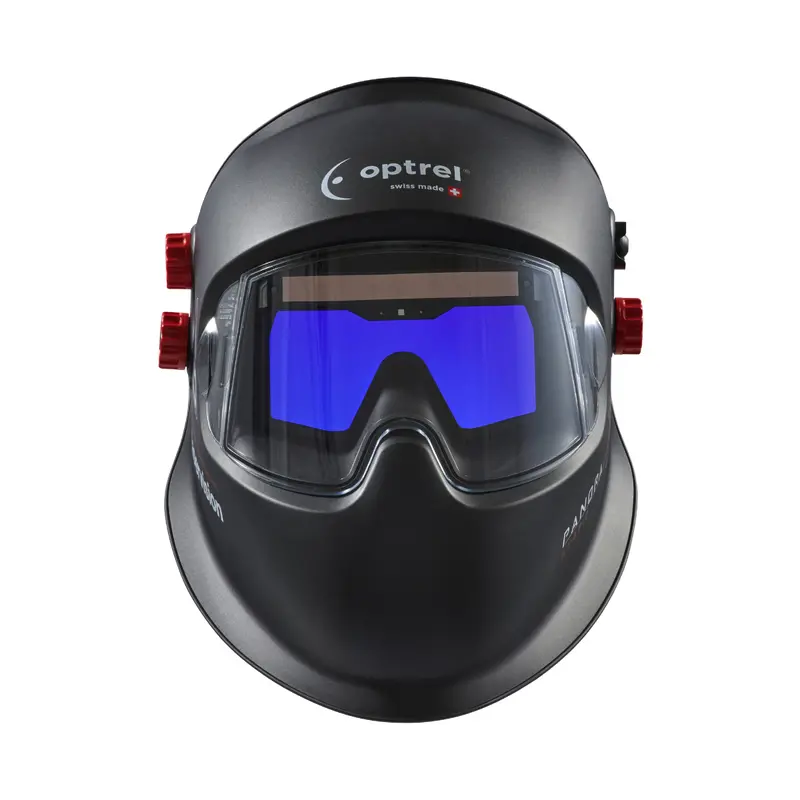

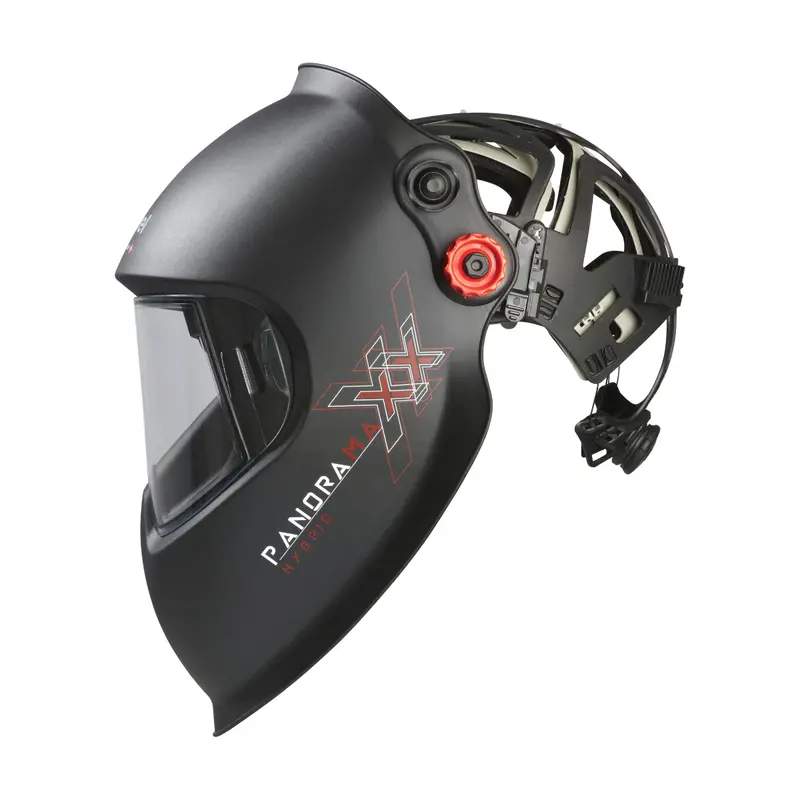

Optrel Panoramaxx Hybrid Auto-Darkening Laser Welding Helmet – Black, Model 1010.301

Description

Description

Panoramaxx hybrid – black: Laser- / welding helmet with color realistic panoramic view, variable shade level with ShadeTronic 3/5-13 (manual 4-9, recommended for laser welding), opening delay with FadeTronic, grinding mode, sensitivity adjustment, optrel re-charge, optrel IsoFit headgear.

The Optrel Panoramaxx Hybrid laser and welding helmet features ShadeTronic technology with shade levels 3/5-13 and a clear, 6 x wider panoramic view. It offers IsoFit headgear for comfort, a rechargeable battery, and ultra-fast switching for precision in laser and electrical welding applications. Suitable for the 1000-1100 nm laser range, the Panoramaxx Hybrid is built for arc and laser welding, weighing 695 g and meeting CE, ANSI Z87.1, and other global safety standards.

ShadeTronic

Automatically adapts to changing light conditions of the welding arc.

Grinding Mode

The brightest vision during grinding work ever to be offered by a welding helmet.

5-Point Detection

Intelligent five-sensor control to adjust shade levels even in the most difficult lighting conditions.

True-Color View

Like looking through a glass window.

Delay Funtion

Delay Function Feature.

FadeTronic

Opening of the anti-glare display can be continuously adjusted after welding to significantly reduce eye fatigue.

Overhead Welding

Overhead Welding Feature.

Individual Product Features:

EN 379 Class – 1/1/1/2

Sensor System – 5 Sensors

Applications –

• Laser welding – laser range 1000 – 1100 nm
• Elektrode Welding (Stick Welding, SMAW)
• MIG/MAG (GMAW)
• GMAW High melting rate process
• Flux Cored Wire Welding
• TIG Welding (GTAW)
• Plasma Arc Welding
• Plasma Cutting
• Gas Welding
• Grind Mode

Warranty – 2 years with +1 year extension when you register within 6 months of purchase at optrel.com/register

Included with Product

• Welding helmet
• Optrel IsoFit Headgear
• Operating instructions
• Storage bag
• Micro USB charging cable
• Front cover lens
• Warranty card

Specifications

Click to view the complete Panoramaxx Series spec sheet.
